Apex326
Rim Mounted Dynamic Snare / Tom Microphone
The lightweight high impact ABS body and all metal windscreen provide ample protection for the Apex326 dynamic diaphragm. The tight cardioid pickup pattern helps the front-of-house engineer further define the drum mix by separating the toms from crosstalk between mics.

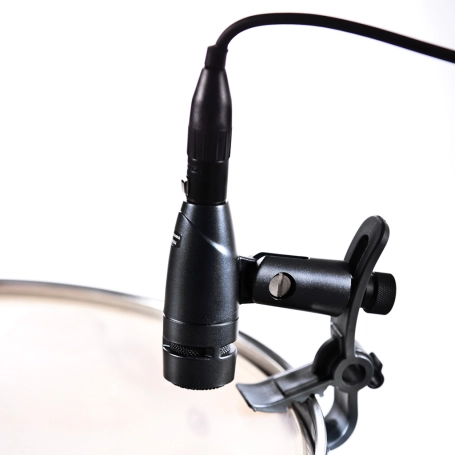

The Apex326 comes equipped with a rubber shock-absorbing mounting clip designed not to shift position or to damage a drum’s chrome or brass rim.
Features
- High Impact ABS Microphone Body for Reduced Weight on Drum Rim
- Rugged ABS Drum Rim Clip
- Handles Extremely High SPL without Distortion or Capsule Overload
- Cardioid Polar Pattern Reduces Cross Talk Between Adjacent Mics
- Gold Plated Pins on XLR Connectors for Improved Signal Transfer
Specifications
| Element: | Moving Coil Dynamic |
| Frequency Response: | 90Hz – 18kHz |
| Sensitivity: | -74dB (± 3 dB) |
| Impedance: | 600 Ω |
| MPX SPL: | 145dB, 1kHz (calculated) |
| Connection: | XLR-M |
| Dimensions: | 3.43 x 3.31 x 1.3 in / 87 x 84 x 33 mm |
Specifications subject to change without notice
The lightweight high impact ABS body and all metal windscreen provide ample protection for the Apex326 dynamic diaphragm. The tight cardioid pickup pattern helps the front-of-house engineer further define the drum mix by separating the toms from crosstalk between mics.
The Apex326 comes equipped with a rubber shock-absorbing mounting clip designed not to shift position or to damage a drum’s chrome or brass rim.
Features
- High Impact ABS Microphone Body for Reduced Weight on Drum Rim
- Rugged ABS Drum Rim Clip
- Handles Extremely High SPL without Distortion or Capsule Overload
- Cardioid Polar Pattern Reduces Cross Talk Between Adjacent Mics
- Gold Plated Pins on XLR Connectors for Improved Signal Transfer
Specifications
| Element: | Moving Coil Dynamic |
| Frequency Response: | 90Hz – 18kHz |
| Sensitivity: | -74dB (± 3 dB) |
| Impedance: | 600 Ω |
| MPX SPL: | 145dB, 1kHz (calculated) |
| Connection: | XLR-M |
| Dimensions: | 3.43 x 3.31 x 1.3 in / 87 x 84 x 33 mm |
Specifications subject to change without notice
