Microphones Instrument Apex325

Apex325

Kick Drum Microphone

Find A Dealer

The Apex325 is ideally suited to handling the high SPL and extended low frequencies that most kick drums can produce. The diaphragm is housed in a solid zinc die cast body for maximum protection. The tight hyper-cardioid pattern also provides improved isolation from other instruments on the stage or bleed from other instruments in and around the kit. Extended low frequency response and a smooth response curve ensure a natural, punchy and clean signal from the bass drum and can easily handle 165dB SPL at the input.

Features

  • Solid Rugged Zinc Cast Body
  • Handles Extremely High SPL without Distortion or Capsule Overload
  • Ideal Tuned Response for Kick Drums
  • Hypercardioid Polar Pattern for Maximum Off-axis Rejection
  • Gold Plated Pins on XLR Connectors for Improved Signal Transfer

Specifications

Element: Moving Coil Dynamic
Frequency Response: 50Hz – 16kHz
Sensitivity: -84dB (± 3 dB)
Impedance: 50 Ω
MPX SPL: 165dB
Connection: XLR-M
Dimensions: 4.69 x 4.25 x 2.36 in / 119 x 108 x 60 mm
Weight: 16.72 oz / 474 g

Specifications subject to change without notice

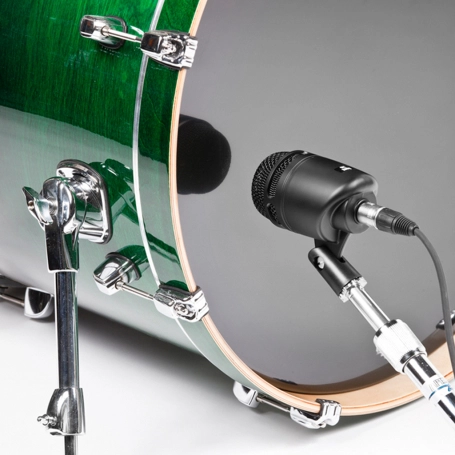

image 1 Apex325 Kick Drum Microphone

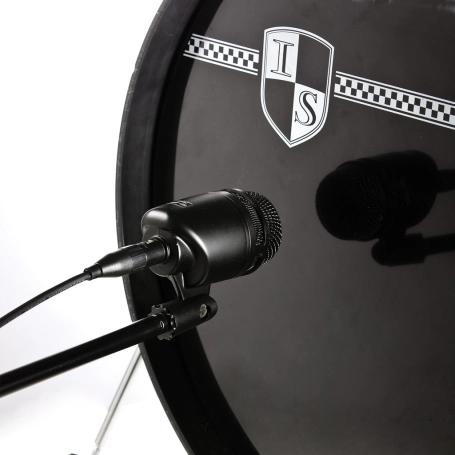

 image 2 Apex325 Kick Drum Microphone
 image 3 Apex325 Kick Drum Microphone

Downloads

Owner's Manual

The Apex325 is ideally suited to handling the high SPL and extended low frequencies that most kick drums can produce. The diaphragm is housed in a solid zinc die cast body for maximum protection. The tight hyper-cardioid pattern also provides improved isolation from other instruments on the stage or bleed from other instruments in and around the kit. Extended low frequency response and a smooth response curve ensure a natural, punchy and clean signal from the bass drum and can easily handle 165dB SPL at the input.

Features

  • Solid Rugged Zinc Cast Body
  • Handles Extremely High SPL without Distortion or Capsule Overload
  • Ideal Tuned Response for Kick Drums
  • Hypercardioid Polar Pattern for Maximum Off-axis Rejection
  • Gold Plated Pins on XLR Connectors for Improved Signal Transfer

Specifications


Element: Moving Coil Dynamic
Frequency Response: 50Hz – 16kHz
Sensitivity: -84dB (± 3 dB)
Impedance: 50 Ω
MPX SPL: 165dB
Connection: XLR-M
Dimensions: 4.69 x 4.25 x 2.36 in / 119 x 108 x 60 mm
Weight: 16.72 oz / 474 g

Specifications subject to change without notice
