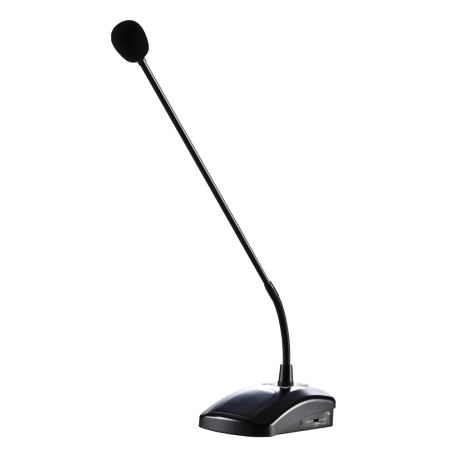

Apex146
Desktop Condenser Microphone w/ Silent Switch
The Apex146 desktop microphone designed for conferencing or public speaking applications.
Three user selectable operating modes (ON/OFF, Push-To-Talk or Push-To-Mute) functions allow the Apex146 to be tailored to any specific requirement or application. The large integrated silent touch-switch on the front panel allows user control of the Apex146 without the annoying snaps and pops that can plague a multi-microphone setup in high gain, high volume applications. An LED illuminated ring in the housing clearly displays the ready-to-talk condition to the user. The Apex146 is ideal for conferencing, discussion groups, tele/video conferencing and announcement applications.
The Apex146 is a condenser microphone and requires phantom power to operate. The microphone is enclosed in a rugged all metal housing with a low reflectance black finish and narrow gooseneck to limit visual distraction on lectern, conference desk or podium.
Features
- Solid All Metal Heavy Duty Base

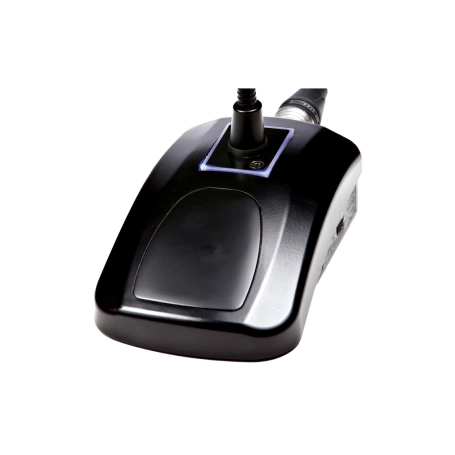

- Large On/Off Silent Operation Touch Switch

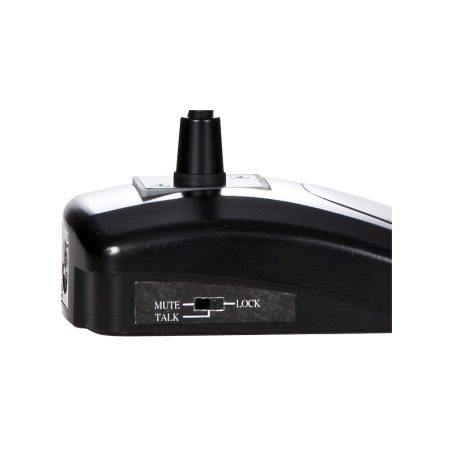

- Three User Selectable Switch Modes (Lock On, Touch to Talk, Touch to Mute)
- Highly Visible On/Off LED Indicator on Base

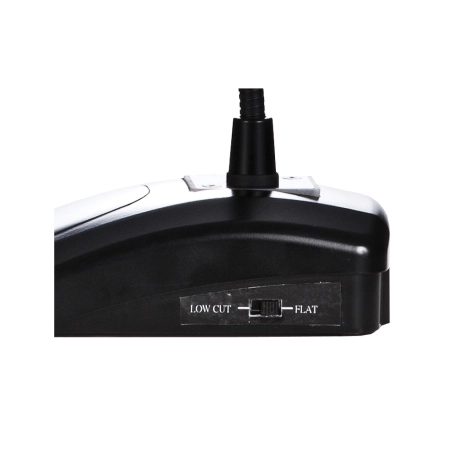

- Integrated Switchable High Pass Filter
- Flexible Integrated Gooseneck
Specifications
| Type: | Black Electret Condenser |
| Frequency Response: | 100Hz – 12kHz |
| Sensitivity: | -58dB +/- 3dB (0dB = 1uBar @ 1kHz) |
| Output Impedance: | 100 Ω ± 30% (at 1 KHz) |
| Power Requirement: | 16 – 52 V Phantom Power |
| Controls: | Front Mounted Touch Switch Side Mounted Operation Mode Switch High Pass Filter Switch (Low Frequency Roll Off) |
| Connection: | 3-pin XLR-M |
| Dimensions: | 5.5 x 3.25 x 1.5 in / 140 x 82 x 38 mm |
| Weight: | 19 in / 483 mm |
Specifications subject to change without notice
